Building a Bronson Bike - The Bronson Tail Light

The Bronson tail light must be added after bobbing the rear fender.

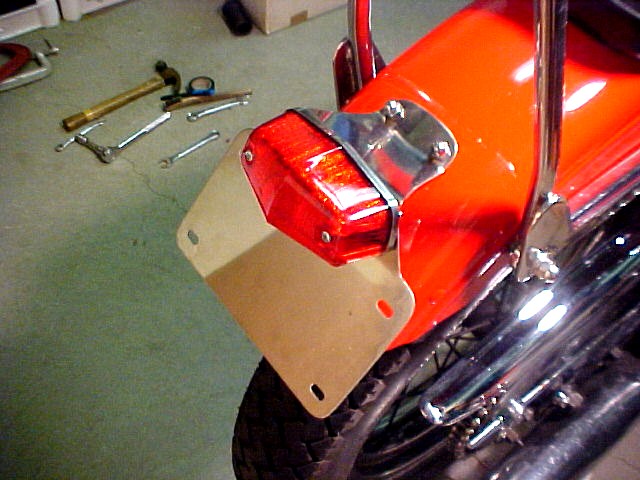

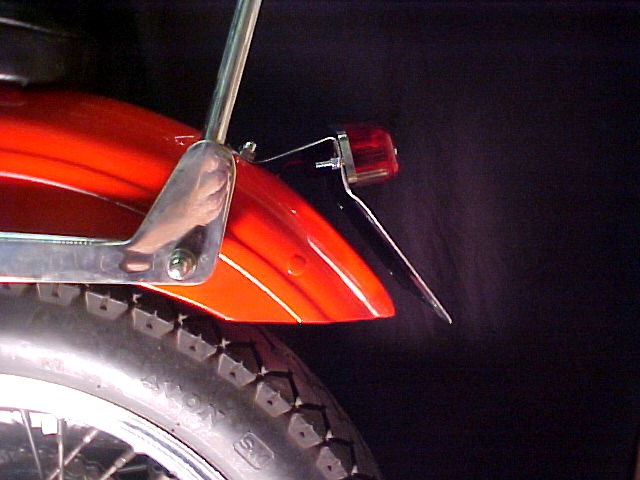

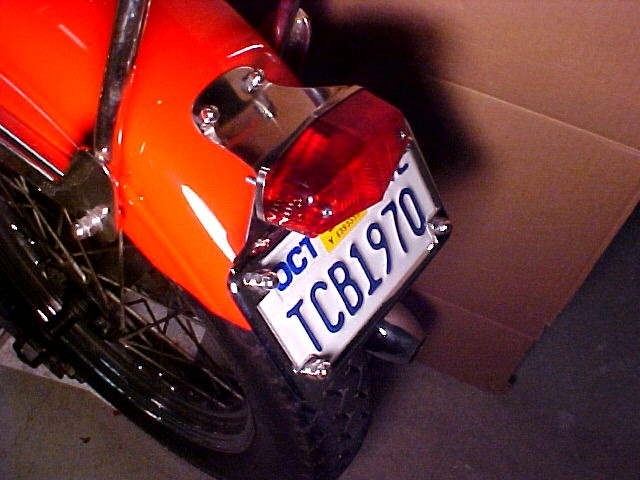

Measuring twice and drilling once will make this addition to the bike a beautiful one. On the right above the plate holder dips slightly below the trimmed edge of the bobbed fender. You can see it is parallel with the downward curve of the fender.

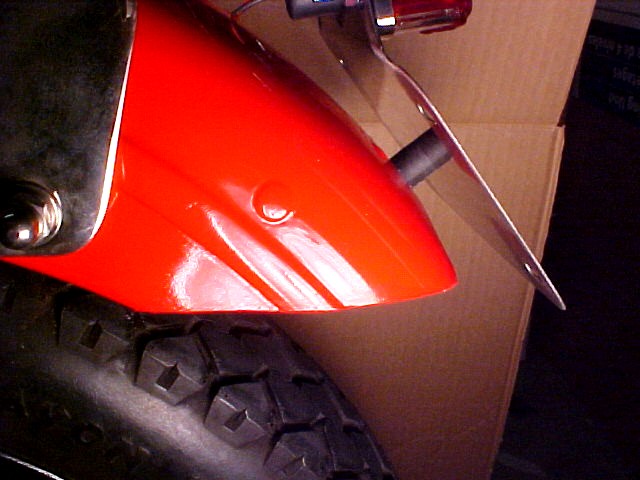

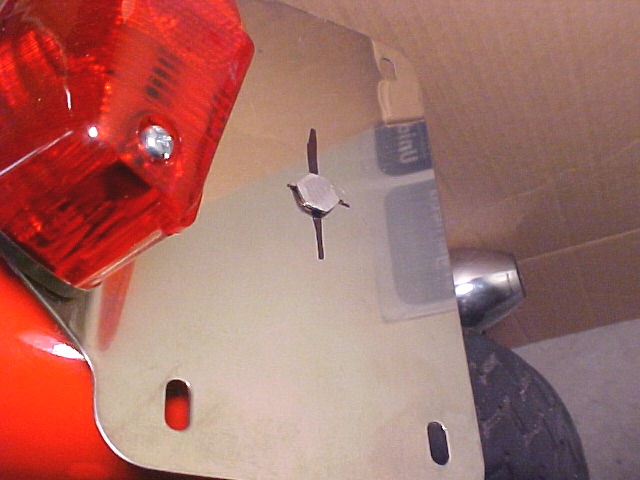

The tail light is made of thin metal, and can be twisted easily. A securing device must be added. The bolt has been ground almost flat, about 1/16 of and inch, thus not to raise the license plate up off the mounting plate once added. Note the rubber spacer to hold the plate firm and off the fender. The rubber grommet is a piece of auto fuel hose about 3/8 to 1/2 inch long. Be sure to use a nylon lock nut.

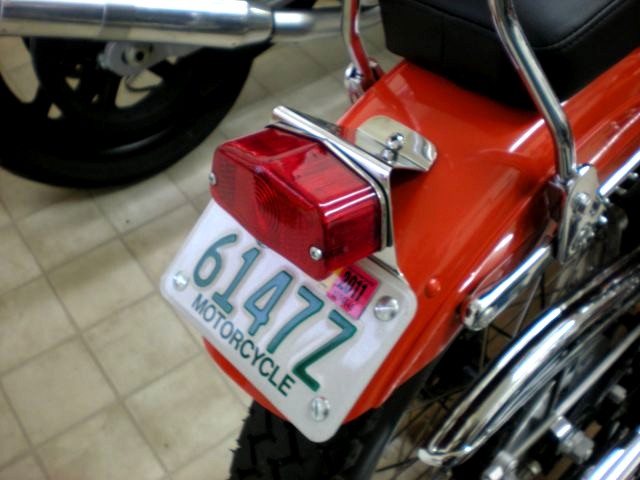

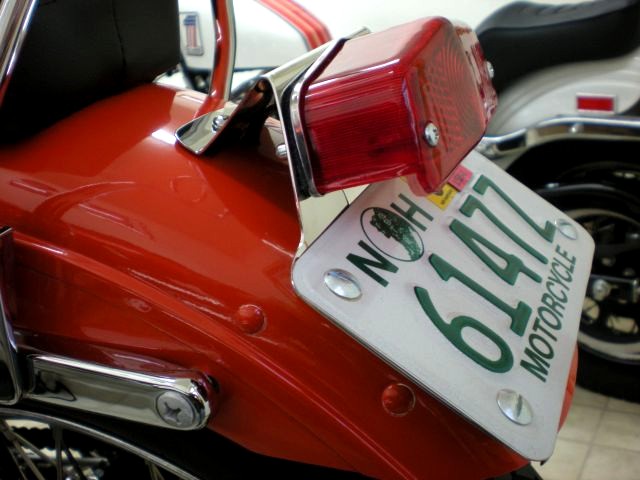

The tail light is custom and hand made of stainless steel here, custom made by Peter, very nice job.
